德國semikron賽米控三相整流橋

產品簡介

德國Semikron賽米控公司生產的整流橋模塊，內部拓撲結構豐富，按輸入交流電相數可分為單相橋、三相橋。本頁介紹Semikron三相橋。本公司長期備有以下現貨三相橋：SKD62/16、 SKD82/16、 SKD110/16、 SKD160/16、 SKD210/16等。

產品詳情

德國semikron 整流橋

1、單相整流橋

2、三相整流橋

德國semikron賽米控橋式整流器將整流電路的所有分支集成在單個緊湊的外殼中。其電流范圍從幾安培到數百安培不等，具有不同的封裝形式。賽米控提供單相或三相拓撲結構的橋式整流器模塊，帶或不帶制動斬波器。橋式整流器模塊具有不同封裝形式，如SEMiX、SEMITOP、SEMIPONT、Power Bridge和MiniSKiiP。

本公司作為德國semikron賽米控橋式整流器中國經銷商長期備有現貨。

2. 三相整流橋

外形尺寸

Case G 11b (29x29x10)

G13 (55x45x24)

Case G 50a (29x29x10)

G50b (29x29x10)

G51 (90x29x18)

G55 (63.5x29.5x17)

DBI (40x20x10)

SEMIPONT 1 (63x32x22)

SEMIPONT 2 (65x48x36)

SEMIPONT 3 (72x42x30)

SEMIPONT 4 (94x54x32)

SEMIPONT 5 (81x46x17)

SEMIPONT 6 (100x45x17)

SEMITOP 2 (41x28x12)

SEMITOP 2 Press-Fit

(28x40.5x12)

SEMITOP 3 (55x31x12)

SEMiX 5p (130x70x17)

SEMiX 13 (138x71x17)

型號列表

內部連接圖	Product Type	VDRM/VRRM (V)	ID (A)	IFSM/ITSM (A)	外型
DH	DBI 6	400-1800	9	150	DBI (40x20x10)
	DBI 6 P	400-2200	9	165
	DBI 25	400-1800	25	310
	DBI 25 P	400-2200	27	310
D	SEMiX251D12Fs	1200	256	1330	SEMiX 13 (138x71x17)
	SEMiX291D16s	1600	232	1380
	SEMiX341D16s	1600	348	2000
	SEMiX501D17Fs	1700	494	2140
	SK 55 D	800-1600	55	200	SEMITOP 2 (41x28x12)
	SK 70 D	800-1600	70	270	SEMITOP 2 (41x28x12)
	SK 80 D 12F	1200	80	550	SEMITOP 3 (55x31x12)
	SK 95 D	800-1600	95	560	SEMITOP 2 (41x28x12)
	SK 95 D 16p	1600	95	560	SEMITOP 2 Press-Fit (28x40.5x12)
DT-T	SEMiX245DH16	1600	336	1800	SEMiX 5p (130x70x17)
DT-T	SEMiX365DH16	1600	484	2750	SEMiX 5p (130x70x17)
DH	SEMiX241DH16s	1600	298	1800	SEMiX 13 (138x71x17)
	SK 40 DH	800-1600	42	270	SEMITOP 3 (55x31x12)
	SK 70 DH	800-1600	68	270	SEMITOP 3 (55x31x12)
	SKDH 100	800-1400	100	850	SEMIPONT 2 (65x48x36)
	SKDH 115	1200-1600	110	950	SEMIPONT 5 (81x46x17)
	SKDH 145	1200-1600	145	1250	SEMIPONT 5 (81x46x17)
DT	SK 40 DT	800-1600	42	270	SEMITOP 3 (55x31x12)
	SK 70 DT	800-1600	68	380	SEMITOP 3 (55x31x12)
	SKDT 60	400-1400	60	400	SEMIPONT 2 (65x48x36)
	SKDT 115	1200-1600	110	950	SEMIPONT 5 (81x46x17)
	SKDT 145	1200-1600	145	1250	SEMIPONT 5 (81x46x17)
SKD	SKD 25	200-1600	20	320	Case G 11b (29x29x10)
	SKD 26	400-1600	20	320	G50b (29x29x10)
	SKD 30	200-1600	30	320	G13 (55x45x24)
	SKD 31	200-1600	31	320	SEMIPONT 1 (63x32x22)
	SKD 33	400-1800	33	240	G55 (63.5x29.5x17)
	SKD 35	400-1600	36	320	Case G 11b (29x29x10)
	SKD 35 AV	1200-1600	39	345	Case G 11b (29x29x10)
	SKD 51	400-1800	50	700	G51 (90x29x18)
	SKD 53	400-1800	53	270	G55 (63.5x29.5x17)
	SKD 60	400-1600	60	850	SEMIPONT 2 (65x48x36)
	SKD 62	400-1800	60	425	SEMIPONT 3 (72x42x30)

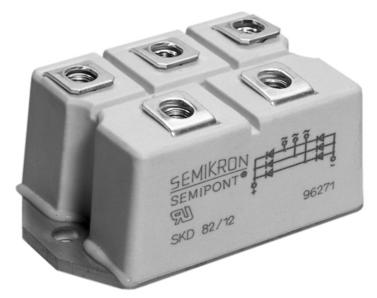

	SKD 82	400-1800	80	640	SEMIPONT 3 (72x42x30)
	SKD 83	400-1800	83	560	G55 (63.5x29.5x17)
	SKD 100	400-1600	100	1000	SEMIPONT 2 (65x48x36)
	SKD 110	800-1800	110	1000	SEMIPONT 4 (94x54x32)
	SKD 115	1200-1800	110	1150	SEMIPONT 5 (81x46x17)
	SKD 145	1200-1800	145	1700	SEMIPONT 5 (81x46x17)
	SKD146_16-L140	1600	140	1250	SEMIPONT 6 (100x45x17)
	SKD 160	800-1800	205	1500	SEMIPONT 4 (94x54x32)
	SKD 210	900-1800	207	1600	SEMIPONT 4 (94x54x32)
SKD-chopper	SKD116_18-L75	1800	110	1050	SEMIPONT 6 (100x45x17)
	SKD 116-16 L105	1200-1600	110	1050	SEMIPONT 6 (100x45x17)
	SKD 116-12 L140	1200-1600	110	1050	SEMIPONT 6 (100x45x17)
	SKD 146/12-L140	1200	140	1250	SEMIPONT 6 (100x45x17)
	SKD 146/16-L140	1600	140	1250	SEMIPONT 6 (100x45x17)
	SKD 146/..-L105	1200-1600	140	1250	SEMIPONT 6 (100x45x17)
	SKD 146/..-L140T4	1200-1600	140	1250	SEMIPONT 6 (100x45x17)
DH-chopper	SKDH 116/..L105	1200-1600	110	1000	SEMIPONT 6 (100x45x17)
	SKDH 116/..L140	1200-1600	110	1000	SEMIPONT 6 (100x45x17)
	SKDH 146/..-L105	1200-1600	140	1250	SEMIPONT 6 (100x45x17)
	SKDH 146/..-L140	1200-1600	140	1250	SEMIPONT 6 (100x45x17)
