專用型驅動器

產品簡介

專用型驅動器是指該驅動器適合Infineon、FUJI、Mitsubishi這幾個廠家生產的某些具體型號IGBT模塊，通常功率較大。本公司作為瑞士CT-Concept公司 IGBT驅動板在中國的經銷商，保證原裝正品。

產品詳情

瑞士CT-Concept公司IGBT驅動板

瑞士CT-Concept是全球大、中功率IGBT驅動器技術與市場的龍頭企業，經過二十多年的創業，逐漸占據著超過全球80%的市場份額。在面對需求多樣化的電力電子市場，推出了一系列精湛的IGBT驅動器，技術高端、功能卓越、質量上乘、性價比理想，滿足客戶最細致嚴苛的要求。尤其是SCALE系列IGBT驅動器，采用獨創的SCALE 專用集成電路芯片組，為全球驅動器市場樹立了權威的行業標準。CT-Concept公司的產品面向各個應用領域，其中包括驅動、牽引、鐵路、風能、太陽能、電源技術、二電平和多電平中壓變頻器、醫學工程、工業生產技術、感應加熱、焊接技術、軍事應用、通信與研究。

Concept公司IGBT驅動板包括兩大類：一、【SCALE-1型驅動芯】和【SCALE-2型驅動芯】通用型驅動器；

二、【SCALE-1型即插即用驅動器】和【SCALE-2型即插即用驅動器】專用型驅動器

（點擊某一類，可跳轉至相應頁面）

二、【SCALE-1 Plug-and-play Drivers SCALE-1型即插即用驅動器】 & 【SCALE-2 Plug-and-play Drivers SCALE-2型即插即用驅動器】專用型驅動器

型號	IGBT 等級	各廠家IGBT所配驅動器
		Iinfineon	Fuji	Mitsubishi
SCALE-1 Plug-and-play Drivers SCALE-1型即插即用驅動器

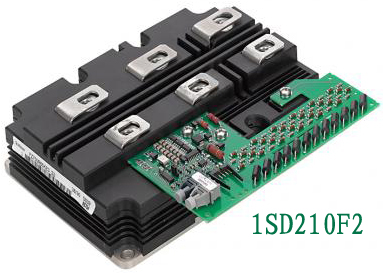

1SD210F2	4.5kV- 6.5 kV 200A-1200 A	Iinfineon： 1SD210F2-Fx200R65KF2 1SD210F2-Fx400R65KF2 1SD210F2-FZ600R65KF2 1SD210F2-FZ250R65KE3 1SD210F2-FZ500R65KE3 1SD210F2-FZ600R65KE3 1SD210F2-FZ750R65KE3 Mitsubishi：1SD210F2-CM200HG-130H 1SD210F2-CM600HG-130H
1SD312F2	4.5kV 400A-1200 A	Mitsubishi：1SD312F2- CM400HB-90H 1SD312F2- CM600HB-90H 1SD312F2-CM900HB-90H 1SD312F2-CM900HC-90H 1SD312F2-CM1200HC-90R
1SD418F2	1.7 kV-3.3kV 800 A- 2400 A	Iinfineon： 1SD418F2-FZ2400R17KF6 1SD418F2-FX800R33KF2 1SD418F2-FZ1200R33KF2 1SD418F2-FZ1200R33KL2C Mitsubishi: 1SD418F2-CM1200HC-50H 1SD418F2-CM1200HB-66H 1SD418F2-CM1200HC-66H 1SD418F2-CM800E2C-66H 1SD418F2-CM800HB-66H
1SD536F2	1.2 kV to 3.3 kV 400 A to 3600 A	Iinfineon：1SD536F2-FZ2400R12KE3 1SD536F2-FZ3600R12KE3 1SD536F2-FD1200R17KE3-K_B2 1SD536F2-FZ1600R17HP4_B2 1SD536F2-FZ1600R17KE3 1SD536F2-FZ1600R17KE3_B2 1SD536F2-FZ2400R17HP4_B2 1SD536F2-FZ2400R17KE3 1SD536F2-FZ2400R17HP4_B29 1SD536F2-FZ2400R17KF6 1SD536F2-FZ3600R17KE3 1SD536F2-FD1000R33HE3-K 1SD536F2-FD400R33KF2C 1SD536F2-FX800R33KF2 1SD536F2-FZ1000R33HL3 1SD536F2-FZ1200R33KF2 1SD536F2-FZ1200R33KL2C 1SD536F2-FZ1500R33HE3 1SD536F2-FZ1500R33HL3 Fuji： 1SD536F2-1MBI1200U4C-120 1SD536F2-1MBI1600U4C-120.pdf 1SD536F2-1MBI3600U4D-120 1SD536F2-1MBI1200U4C-170 1SD536F2-1MBI1600U4C-170 1SD536F2-1MBI2400U4D-170 1SD536F2-1MBI3600U4D-170 Mitsubishi：1SD536F2-CM1200E4C-34N 1SD536F2-CM1800HC-34N 1SD536F2-CM2400HC-34N 1SD536F2-CM2400HCB-34N 1SD536F2-CM1200HC-50H 1SD536F2-CM1200HB-66H 1SD536F2-CM1200HC-66H 1SD536F2-CM1500HC-66R 1SD536F2-CM800E2C-66H 1SD536F2-CM800HB-66H 1SD536F2-CM800HC-66H
2SB315A	1.2 kV to 1.7 kV 800 A to 1200 A	Iinfineon： 2SB315A-FF800R12KE3 2SB315A-FF1200R17KE3_B2 2SB315A-FF800R17KF6 Fuji： 2SB315A-2MBI800U4G-120 2SB315A-2MBI800U4G-170 2SB315A-2MBI800VT-170E Mitsubishi： 2SB315A-CM1200DC-34N 2SB315A-CM800DZ-34H
2SB315B	1.2kV - 1.7kV 800A - 1200A	Iinfineon： 2SB315B-FF800R12KE3 2SB315B-FF1200R17KE3_B2 2SB315B-FF800R17KF6 Fuji： 2SB315B-2MBI800U4G-120 2SB315B-2MBI1200U4G-170 2SB315B-2MBI800U4G-170 Mitsubishi： 2SB315B-CM1200DC-34N 2SB315B-CM800DZ-34H
2SD316EI	1.2kV - 1.7kV 150A - 450A	Iinfineon：2SD316EI-12 with DB01-FF150R12ME3G 2SD316EI-12 with DB01-FF225R12ME3 2SD316EI-12 with DB01-FF300R12ME3 2SD316EI-12 with DB01-FF450R12ME3 2SD316EI-12 with DB01-FF450R12ME4 2SD316EI-17 with DB01-FF150R17ME3G 2SD316EI-17 with DB01-FF300R17ME3 2SD316EI-17 with DB01-FF450R17ME3
6SD312EI	1.2 kV - 1.7 kV 150A - 450A	Fuji： 6SD312EI-12 with EB01-6MBI225U4-120 6SD312EI-17 with EB01-6MBI450U4-170 Iinfineon：6SD312EI-12 with EB01-FS150R12KE3G 6SD312EI-12 with EB01-FS225R12KE3 6SD312EI-12 with EB01-FS300R12KE3 6SD312EI-12 with EB01-FS450R12KE3 6SD312EI-12 with EB01-FS450R12KE4 6SD312EI-17 with EB01-FS150R17KE3G 6SD312EI-17 with EB01-FS300R17KE3 6SD312EI-17 with EB01-FS450R17KE3
SCALE-2 Plug-and-play Drivers SCALE-2型即插即用驅動器
1SP0335	3.3 kV - 6.5 kV 250A - 1200A	各廠家通用：1SP0335x2xx-33 1SP0335x2xx-45 1SP0335x2xx-65 Iinfineon： 1SP0335x2xx-FZ800R33KL2C_B5 1SP0335x2xx-FZ1200R33KL2C_B5 1SP0335x2xx-FZ1200R45KL3_B5 1SP0335x2xx-FZ200R65KF2 1SP0335x2xx-FZ250R65KE3 1SP0335x2xx-FZ400R65KF2 1SP0335x2xx-FZ500R65KE3 1SP0335x2xx-FZ600R65KE3 1SP0335x2xx-FZ750R65KE3 1SP0335D2Sx-FZ750R65KE3 Mitsubishi： 1SP0335x2xx-CM600HG-90H 1SP0335x2xx-CM900HG-90H 1SP0335x2xx-CM1200HG-90R 1SP0335x2xx-CM750HG-130R
1SP0340	4.5 kV	各廠家通用：1SP0340x2xx-45
1SP0635	1.2kV - 3.3kV 800A - 3600A	各廠家通用：1SP0635x2xx-12 1SP0635x2xx-17 1SP0635x2xx-33 Iinfineon：1SP0635x2xx-FZ1200R12HP4 1SP0635x2xx-FZ2400R12HP4 1SP0635x2xx-FZ3600R12HP4 1SP0635x2xx-FZ1800R17HP4_B29 1SP0635x2xx-FZ3600R17HP4 1SP0635x2xx-FZ1000R33HE3 1SP0635x2xx-FZ1000R33HL3 1SP0635x2xx-FZ1200R33HE3 1SP0635x2xx-FZ1200R33KF2C 1SP0635x2xx-FZ1500R33HE3 1SP0635x2xx-FZ1500R33HL3 Fuji：1SP0635x2xx-1MBI1600VR-170E 1SP0635x2xx-1MBI800UG-330 1SP0635x2xx-1MBI1200UE-330 1SP0635x2xx-1MBI1500UE-330 Mitsubishi：1SP0635x2xx-CM800HC-66H 1SP0635x2xx-CM1000HC-66R 1SP0635x2xx-CM1200HC-66H 1SP0635x2xx-CM1500HC-66R
2SP0115T	600V - 1700V 150A - 600A	各廠家通用：2SP0115T2Ax-06 2SP0115T2Ax-12 2SP0115T2Ax-17 Iinfineon： 2SP0115T2Ax-FF450R06ME3 2SP0115T2Ax-FF600R06ME3 2SP0115T2Ax-FF150R12ME3G 2SP0115T2Ax-FF225R12ME4 2SP0115T2Ax-FF300R12ME3 2SP0115T2Ax-FF300R12ME4 2SP0115T2Ax-FF450R12ME3 2SP0115T2Ax-FF450R12ME4 2SP0115T2Ax-FF600R12ME4 2SP0115T2Ax-FF225R17ME4 2SP0115T2Ax-FF300R17ME3 2SP0115T2Ax-FF300R17ME4 2SP0115T2Ax-FF450R17ME3 2SP0115T2Ax-FF450R17ME4 2SP0115T2Ax-FF600R17ME4 Fuji：2SP0115T2Ax-2MBI225VN-120-50 2SP0115T2Ax-2MBI300VN-120-50 2SP0115T2Ax-2MBI450VN-120-50 2SP0115T2Ax-2MBI600VN-120-50 2SP0115T2Ax-2MBI300VN-170-50 2SP0115T2Ax-2MBI450U4N-170-50 2SP0115T2Ax-2MBI450VN-170-50 2SP0115T2Ax-2MBI550VN-170-50 Mitsubishi：2SP0115T2Ax-CM200DX-24S 2SP0115T2Ax-CM300DX-24S 2SP0115T2Ax-CM450DX-24S
2SP0320	1200V - 1700V 450A -1400A	各廠家通用：2SP0320x2Ax-12 2SP0320x2Bx-12 2SP0320x2Ax-17 Iinfineon： 2SP0320x2Ax-FF450R12IE4 2SP0320x2Ax-FF600R12IE4 2SP0320x2Ax-FF900R12IE4 2SP0320x2Ax-FF900R12IP4 2SP0320x2Ax-FF1400R12IP4 2SP0320x2Ax-FF450R17IE4 2SP0320x2Ax-FF650R17IE4 2SP0320x2Ax-FF650R17IE4D_B2 2SP0320x2Ax-FF1000R17IE4 2SP0320x2Ax-FF1000R17IE4D_B2 2SP0320x2Ax-FF1400R17IP4 Fuji： 2SP0320x2Ax-2MBI900VXA-120E-50 2SP0320x2Ax-2MBI900VXA-120P-50 2SP0320x2Ax-2MBI1400VXB-120P-50 2SP0320x2Ax-2MBI650VXA-170E-50 2SP0320x2Ax-2MBI1000VXB-170E-50 2SP0320x2Ax-2MBI1400VXB-170E-50 2SP0320x2Ax-2MBI1400VXB-170P-50
2SP0325	1200V - 1700V 1800A -2500A	Mitsubishi：2SP0325x2Ax-CM2500DY-24S 2SP0325x2Ax-CM1800DY-34S
6SP0110T	650V 400A	Iinfineon：6SP0110T2Bx-FS400R07A1E3
6SP0235T	650V 800A	Iinfineon：6SP0235T2Ax-FS800R07A2E3
